GRL Designs
Manufacturers of Crane Overload Sensors

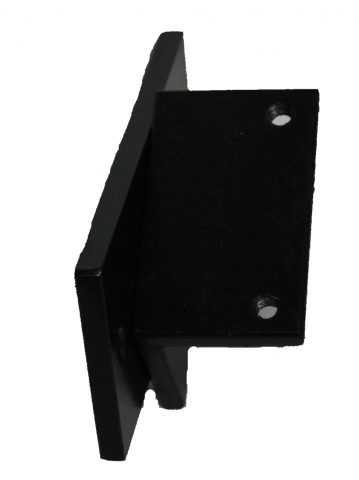

Integrated Meter and Mounting Bracket.

Seperate Meter for customised fitting

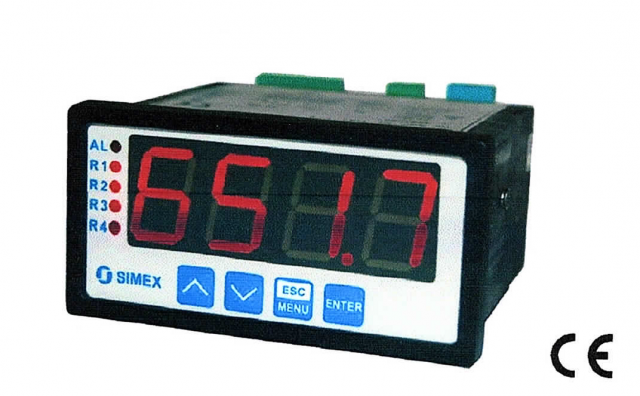

The LIMITLOAD integrated meter has 4  Relay outputs. R1 and R2 are used to signal overload and are set to operate simultaneuosly providing extra security in case of possible switch failure. R3 is set to funtion as slack rope detection. R4 is available for other functions. These can be easliy adjusted via the front panel by authorised personel. Adjustment can be password controlled if necessary.

The readout can be set to indicate the percentage load on the rope or calibrated to indicate the load being lifted. However the unit is not intended as a complete weighing system.

Together with the LC loadcell the complete package complies with the requirements of BS EN12077-2 & BS EN13849-2



Power Supply 85 - 260V ac/dc

Power Consumption 6.0W

Protection Class IP65  (with case)

Operating Temp 0°C - +50°C

Repeatability (R1 - R4) +/- 1 digit

Sensor Power Supply 24V +5%, -10% / Max  100mA stabilised

Display LED Red 4 Digit, 20mm height

Case Dimensions L = 166mm  H = 77mm  W = 127mm

Switching Output 4 Relays  1A/250Vac

R1,R2 set to Normally Closed

R3,R4 set to Normally Open
